Teltonika TAP200 Ceiling Mount WiFi 5 Access Point
Please Note: This device does not come supplied with a PoE injector – these are available to purchase separately or if installing multiple units then consider installing a Teltonika POE switch such as the TSW200. The TAP200 can also be connected to an existing office POE switch that may already be installed to power other office devices such as VoIP phones or IP cameras.
The Teltonika TAP200 Ceiling Mount WiFi 5 Access Point is equipped with dual-band technology, fast roaming, and an RJ45 port with PoE-in functionality. It’s designed to enhance WiFi coverage in medium-density spaces where high network performance is essential. The TAP200 features an integrated mounting bracket for quick and easy installation, and a sleek design to seamlessly blend into retail, enterprise, or any other environment.
Key Features
- Wave-2 802.11 b/g/n/ac Dual Band WiFi 5
- Supporting speeds of up to 1000 Mbps and PoE-in functionality
- UV-stabilised housing for lasting colour

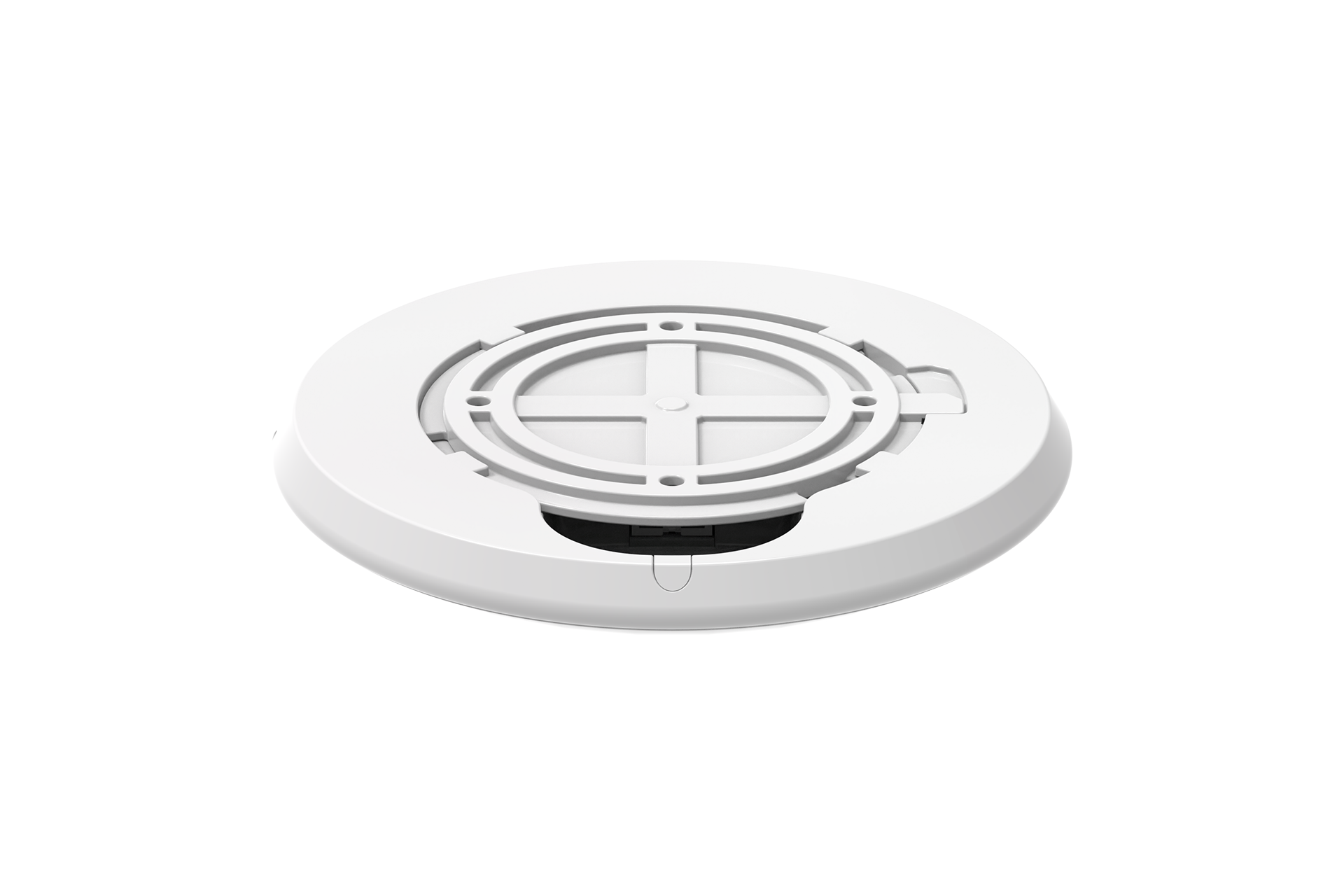

- Included a mounting bracket for quick setup
- Free RMS Management access for 24 months
Dual-Band Excellence
The TAP200 is a powerhouse of dual-band technology. It harnesses the capabilities of Wave-2 802.11 b/g/n/ac Dual Band WiFi 5, supporting speeds of up to 1000 Mbps. Whether you’re streaming, downloading, or working in a medium-density space, this access point ensures that your network performance remains top-notch. It’s the key to achieving seamless connectivity in demanding environments.
Effortless Installation
Installing the TAP200 is a breeze, thanks to the integrated mounting bracket. It’s designed for quick and easy setup, making it ideal for users who need to get their network up and running without unnecessary complexity. This feature streamlines the installation process, ensuring that you can start enjoying enhanced WiFi coverage in no time.
Power and Versatility
The TAP200 goes beyond standard functionality with its PoE-in (Power over Ethernet) feature. This allows you to power the access point through the RJ45 port, simplifying cable management and ensuring efficient operation. It’s a valuable addition for users who prioritise versatility and ease of use in their networking setup.
Stylish and Durable Design
In addition to its powerful performance, the TAP200 boasts a sleek and durable design. Its UV-stabilised housing ensures long-lasting colour, so it won’t fade over time. This means that the access point not only delivers in terms of functionality but also maintains its aesthetic appeal, blending seamlessly into retail, enterprise, or any other environment.
Management Made Easy
To further enhance your experience, the TAP200 offers free RMS (Remote Management System) access for 24 months. This feature provides convenient remote management capabilities, allowing you to monitor and control your network effortlessly. It’s a valuable tool for users who require efficient network management and peace of mind.
TAP200 Specification
Ethernet
Ethernet
- 1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Wireless
Wireless mode
- 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
WiFi security
- WPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE, WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP; AES-CCMP, TKIP, Auto Cipher modes, isolate clients
ESSID
- ESSID stealth mode (Hide SSID)
WiFi users
- Up to 100 simultaneous connections
Wireless Connectivity Features
- Fast roaming (802.11r)
Wireless MAC filter
- Whitelist, blacklist
Network
Network protocols
- TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP client, SNMP
Security
Authentication
- SSH key based, HTTPS, CLI, IP & Login attempts block
VLAN
- Tag-based VLAN separation
Monitoring & Management
Web UI
- HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA
- Firmware update from server, automatic notification
SSH
- SSH (v1, v2)
JSON-RPC
- Management API over HTTP/HTTPS
RMS
- Teltonika Remote Management System (RMS)
System Characteristics
CPU
- MediaTek, Dual-Core, 880 MHz, MIPS 1004Kc
RAM
- 256 MB, DDR3
FLASH storage
- 16MB, SPI NOR Flash
Firmware/Configuration
Web UI
- Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
- Update FW
RMS Update
- FW/configuration for multiple devices at once
Keep settings
- Update FW without losing current configuration
Firmware Customisation
Operating system
- RutOS (OpenWrt based Linux OS)
Supported languages
- Busybox shell, Lua, C, C++
Development tools
- SDK package with build environment provided
Power
Connector
- RJ45 Socket
Input voltage range
- 44.0 – 57.0 V
PoE standards
- 802.3af PoE Class 1
Power consumption
- Idle: < 4 W / Max: < 5.5 W
Physical Interfaces
Ethernet
- 1 x RJ45 10/100/1000 Mbps
Status LEDs
- 1 x Power LED (can be turned off from web-UI)
Antennas
- 2 x Internal for 2.4 GHz WiFi, 2 x Internal for 5 GHz WiFi
Reset
- Reboot/User default reset/Factory reset button
Physical Specification
Casing material
- UV stabilised plastic
Dimensions (W x H x D)
- Ø 158 mm x 30 mm
Weight
- 190 g
Operating temperature
- -40°C to 75°C
Operating humidity
- 10% to 90% non-condensing
Ingress Protection Rating
- IP30
Regulatory & Type Approvals
Regulatory
- CE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, WEEE
EMI Immunity
Standards
- EN 55032:2015+A11:2020
- EN 55035:2017+A11:2020
- EN 61000-3-3:2013+A1:2019+A2:2021
- EN IEC 61000-3-2:2019+A1:2021
- EN 301 489-1 V2.2.3
- EN 301 489-17 V3.2.4
ESD
- EN 61000-4-2:2009
RS
- EN IEC 61000-4-3:2020
EFT
- EN 61000-4-4:2012
Surge protection
- EN 61000-4-5:2014+A1:2017
CS
- EN 61000-4-6:2014
DIP
- EN IEC 61000-4-11:2020
RF
Standards
- EN 300 328 V2.2.2; EN 300 893 V2.1.1; EN 300 440 V2.2.1
Safety
Standards
- IEC 62368-1:2018
- EN IEC 62368-1:2020+A11:2020
- EN IEC 62311:2020
Package
Package Contents
- 1 x TAP200 Access Point
- 1 x Ceiling Mount Bracket
- 1 x QSG (Quick Start Guide)
- 1 x WiFi Information Sticker
STANDARD ORDER CODES
| Product code | HS Code | HTS Code | Package contains |
|---|---|---|---|
| TAP200 00000 | 851762 | 8517.62.00 | Standard package |
| TAP200 00300 | 851762 | 8517.62.00 | Standard package with Euro 15 W PoE Injector |
