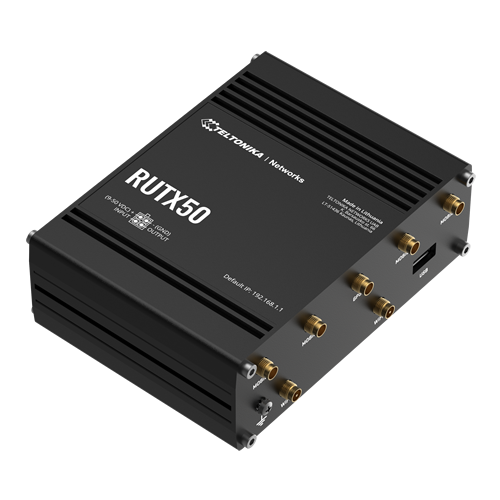

Teltonika RUTX50: The Premium 5G Router for Industrial Applications
As we navigate the rapidly evolving landscape of industrial connectivity, the Teltonika RUTX50 emerges as a powerhouse solution, offering unparalleled performance and versatility. This premium 5G router is designed to meet the most demanding requirements of modern industrial applications, setting a new standard for high-speed, reliable connectivity.
The Pinnacle of 5G Technology
The RUTX50 represents the cutting edge of Teltonika’s 5G router range, building upon the foundation laid by its more affordable counterpart, the RUTM51. While both routers offer impressive 5G capabilities, the RUTX50 takes performance to the next level, making it the ideal choice for businesses that require the absolute best in connectivity solutions.
Key Features and Advantages
1. Ultra-Fast 5G and 4G Speeds
The RUTX50 boasts blazing-fast 5G speeds of up to 3.3 Gbps download and 900 Mbps upload. What sets it apart is its advanced 4G LTE capabilities, featuring CAT20 technology that delivers speeds up to 2.0 Gbps download and 200 Mbps upload. This is a significant upgrade from the RUTM51’s CAT12 4G LTE, ensuring superior performance even in areas where 5G coverage is still developing.
2. Advanced Wi-Fi Capabilities
Equipped with Wi-Fi 5 (802.11ac Wave 2) technology, the RUTX50 offers data transmission rates of up to 867 Mbps. It supports dual-band operation and MU-MIMO, providing robust and efficient wireless connectivity for multiple devices simultaneously.
3. GNSS Integration
Unlike the RUTM51, the RUTX50 comes with built-in GNSS (Global Navigation Satellite System) capabilities. This feature is crucial for applications requiring precise location tracking, such as fleet management or asset monitoring in large industrial settings.
4. Powerful Processing
At the heart of the RUTX50 lies a quad-core ARM Cortex A7 CPU clocked at 717 MHz, coupled with 256 MB of RAM. This robust processing power ensures smooth operation even under heavy loads, making it suitable for complex industrial applications.
5. Versatile Connectivity Options
The RUTX50 offers a wide array of connectivity options, including 5 Gigabit Ethernet ports, dual SIM slots for network redundancy, and a USB port for additional peripherals or storage.
6. Industrial-Grade Design
Built to withstand harsh industrial environments, the RUTX50 features a durable aluminium housing and operates across a wide temperature range from -40°C to 75°C. Its IP30 rating provides protection against dust and minor ingress.
Full Technical Specifications
| Category | Specification |
|---|---|
| Cellular Connectivity | |
| 5G | Sub-6GHz SA: 2.1 Gbps DL, 900 Mbps UL; NSA: 3.3 Gbps DL, 600 Mbps UL |
| 4G LTE | CAT20: 2.0 Gbps DL, 200 Mbps UL |
| 3G | 42 Mbps DL, 5.76 Mbps UL |
| Wi-Fi | |
| Standards | IEEE 802.11b/g/n/ac Wave 2 (Wi-Fi 5) |
| Speed | Up to 867 Mbps |
| Features | Dual Band, MU-MIMO, 802.11r fast transition |
| Modes | Access Point (AP), Station (STA) |
| Security | WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP |
| Hardware | |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB (100 MB available for userspace) |
| Flash | 256 MB (80 MB available for userspace) |
| Interfaces | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| USB | 1 x USB 2.0 |
| SIM | 2 x Mini SIM slots (2FF), 1.8 V/3 V |
| I/O | 1 x Digital Input, 1 x Digital Output |
| Power | |
| Input Voltage | 9 – 50 VDC |
| PoE | Passive PoE (Mode B, 9 – 50 VDC) |
| Consumption | Idle: <4 W, Max: <18 W |
| Physical | |
| Dimensions | 132 x 44.2 x 95.1 mm |
| Weight | 533 g |
| Housing | Aluminium |
| Mounting | DIN rail, wall mount, flat surface |
| Environmental | |
| Operating Temperature | -40°C to 75°C |
| IP Rating | IP30 |
| Software & Management | |
| OS | RutOS (based on OpenWrt) |
| Remote Management | Teltonika RMS compatible |
| VPN Support | OpenVPN, IPsec, GRE, PPTP, L2TP, DMVPN |
| GNSS | |
| Supported Systems | GPS, GLONASS, BeiDou, Galileo, QZSS |
Applications Across Industries
The RUTX50’s advanced features make it suitable for a wide range of industrial applications:
- Smart Manufacturing: Enables real-time monitoring and control of production lines with ultra-low latency.
- Transportation and Logistics: Provides reliable connectivity for fleet management and asset tracking, leveraging its GNSS capabilities.
- Energy and Utilities: Supports remote monitoring and control of power grids, renewable energy installations, and oil and gas facilities.
- Smart Cities: Powers high-bandwidth applications like traffic management systems, public safety networks, and smart infrastructure.
- Healthcare: Enables telemedicine solutions and connects medical devices in hospitals and clinics.
- Retail: Supports high-speed point-of-sale systems, digital signage, and inventory management solutions.
RUTX50 vs RUTM51: Key Differences
While both the RUTX50 and RUTM51 offer impressive 5G capabilities, several key differences set them apart:
- 4G LTE Performance: The RUTX50 features CAT20 LTE, offering significantly faster 4G speeds compared to the RUTM51’s CAT12 LTE.
- GNSS Functionality: The RUTX50 includes built-in GNSS support, which is absent in the RUTM51.
- Processing Power: The RUTX50 boasts a more powerful quad-core CPU, providing enhanced performance for demanding applications.
- Price Point: The RUTX50 is positioned as a premium option, with the RUTM51 offering a more budget-friendly entry into 5G technology.
Conclusion: Investing in Future-Proof Connectivity
The Teltonika RUTX50 represents the pinnacle of industrial 5G router technology. Its combination of blazing-fast 5G speeds, advanced 4G capabilities, and robust features like GNSS support make it an ideal choice for businesses that demand the very best in connectivity solutions.
While the RUTM51 offers an excellent entry point into 5G technology, the RUTX50 takes it a step further, providing the additional power and features needed for the most demanding industrial applications. As we move towards an increasingly connected future, the RUTX50 stands ready to meet the challenges of Industry 4.0 and beyond.
For businesses looking to future-proof their operations and leverage the full potential of 5G technology, the Teltonika RUTX50 is not just a router – it’s an investment in the future of industrial connectivity.
